COMET SYSTEM, s.r.o.Program for Data Loggers Sxxxx, Rxxxx, Gxxxx, Dxxxx
 |
code: SWR004 Program for Windows for data loggers of Rxxxx, Sxxxx, Gxxxx, Dxxxx families. Installation program is common for both versions of program (basic and optional). When program is running first time, it asks installation code - if code is entered, program will run as optional version. If no code is supplied, program will be installed as basic version. |
Features

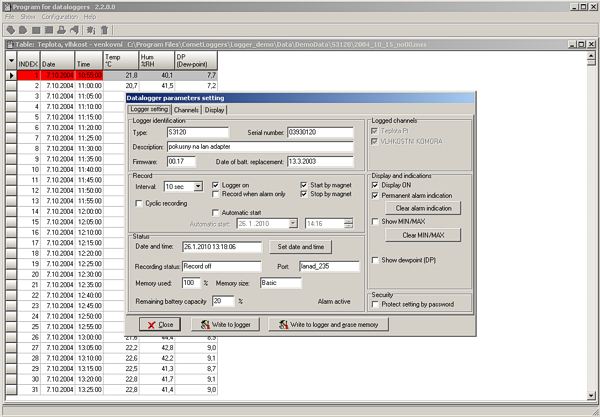

Program is designed for communication with data loggers, read out the configuration of the device and setting up the parameters.
It also allows to read out the data from the device in order to get the measured values.
For the temperature and humidity devices is possible to select one counted value (dew point temperature, absolute humidity, specific humidity, mixing ratio, specific enthalpy).

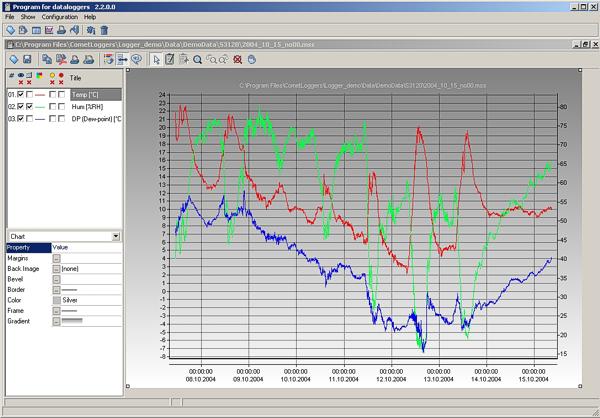

The data can be viewed and printed as table or graph.
It it also possible to export the data to DBF or TXT files.
You can change the axis and select any time range to view or print out the data.
It is allowed to zoom the graph, modify the drawing width and the its color.
It is also possible to separate the quantities from each other and print some of them or all of them separately.
The main advantages of optional software comparing to the freeware:
- different graphical engine (zoom, selection of the curves, axis modification)
- selection of the values from table to print them out
- online visualization of actual values
- statistic values, counting of MKT (Mean Kinetic Temperature)
- communication with more LAN adapters (freeware supports only one)
- communication via GSM modem (dialling) or GPRS (data)
- autodownload from more data loggers
- automatic export to DBF or TXT after data download
- selectable path to store data (freeware always saves to "My Documents")
Minimum system requirements: operational system Windows 98 and newer, graphic resolution 800x600, approximately 10MB of hard disk free space, processor Pentium 166MHz minimum, minimum 32MB RAM.
| FEATURE | FREE | OPTIONAL | DBL |
| General features | |||
| Technical support | No | Yes | Yes |
| Languages in the program | Yes | Yes | Yes |
| Program settings | |||
| Communication settings (basic settings) | Yes | No | No |
| Data presentation (basic settings) | Yes | No | No |
| Communication settings (extended settings) | No | Yes | Yes |
| Data presentation (extended settings) | No | Yes | Yes |
| Data storing (Folders and files settings) | No | Yes | Yes |
| M2M connection settings | No | Yes | Yes |
| Autodownload | No | Yes | Yes |
| Program security (users and passwords) | No | Yes | Yes |
| Data handling | |||
| Download record from the data logger | Yes | Yes | Yes |
| Open record from the file | Yes | Yes | Yes |
| Show data into the table | Yes | Yes | Yes |
| Data export to DBF (basic export) | Yes | No | No |
| Data export to XLS (basic export) | Yes | No | No |
| Data export to DBF (extended options) | No | Yes | Yes |
| Data export to XLS (extended options) | No | Yes | Yes |
| Print data from the table (basic print) | Yes | No | No |
| Print data from the table (extended options) | No | Yes | Yes |
| Statistics | No | Yes | Yes |
| Graphics | |||
| Simple graph | Yes | No | No |
| Graph | No | Yes | Yes |
| Simple graph print | Yes | No | No |
| Graph print | No | Yes | Yes |
| Graph export to PDF | No | Yes | Yes |
| Datalogger handling | |||
| Datalogger configuration | Yes | Yes | Yes |
| Datalogger memory erase | Yes | Yes | Yes |
| Battery exchange | Yes | Yes | Yes |
| Save configuration to the file | Yes | Yes | Yes |
| Read configuration from the file | Yes | Yes | Yes |
| Database | |||
| Data export to the DLDB database | No | No | Yes |
| Data download with export to the DLDB database | No | No | Yes |
| Autodownload with export to the DLDB database | No | No | Yes |
| Data view from DLDB database | No | No | Yes |
SWR004 Program for Data Loggers version 3.0.0.15
